Manufacturer: Finish Thompson
Series: FTI DB

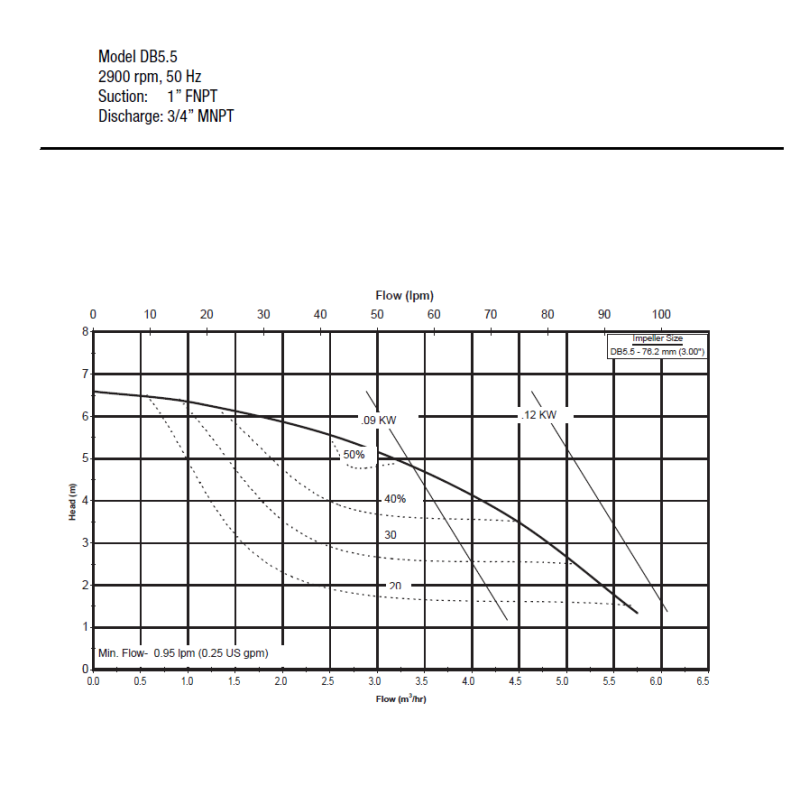

The following powers are valid for 2-pole (2900 rpm) motors.
Impeller diameter: 76.2 mm
Max. delivery: 5.7m³/h @ 1.4 m
Max. head: 6.6 m @ 0.06 m³/h
Recommended duty point: 2.8 m³/h @ 5.3 m
Max. pump housing pressure: 5.5 bar
Transportable liquid characteristics:
- max. temperature: 82 °C
- max. viscosity: 50 cP
- max. density (Sg): 1.8
- max. solids concentration: 10 wt%
- max. sludge particle size: 0.1 mm
- max. individual particle size: 0.4 mm
- max. particle hardness: 80 HS
Material of parts in contact with liquid:
- housing: glass fiber reinforced PP (blue)
- connection: BSP (suction internal, pressure external thread)
- bushing: PTFE
- o-ring: EPDM
Connection size:
- suction: 1"
- discharge: ¾"
Connectable IEC motor size and design:
IEC63/B14 (0,18 and 0,25 kW)
Comment:
- the model can be ordered with a different impeller size, more suitable for the expected operating points. This may modify the motor connection and motor power. In order to make a choice, in addition to the operating range, the density of the liquid must
- this PTFE bushing pump cannot run dry, even for a short time
- the factory provides a 5-year warranty for manufacturing defects, this does not apply to flexible and wearing parts
